ANSI/NSF Standard 42
-Purtrex TM Indepth Filter Cartridge
◇ Lengthen service life & reduce the replacement frequency
◇ Strong filth bearing capability：
◇ Pure polypropylene(PP) structure
◇ Manufacturing engineering that has been fully verified
◇ More wider length and connection fittings range.
◇ Can serve the following markets：
• Food & Drink
• Preliminary treatment of reverse osmosis
• Petroleum & Natural gas
• Fine chemical industry
• Electronic industry
• Metal finishing
• Paper pulp & Paper making
◇ Product Order Information
If you want to place an order for the Purtrex cartridge of standard end socket, you can choose the first three items that designed on bold face letter, the identification of product, for example: PX05-29-1/4. If you want to order the Purtrex with one or multi-end socket connection fittings, your should look over six items of bold face letters in the table, for example:PX05-29-1/4YYP or PX05-29-1/4XK .
|
Example PX |
05 |
29 1/4 |
Y |
Y |
Y |
|
Product Name |
Micron |
Cartridge |
End1 |
End1 |
|
|
Rating |
Length |
Adapter |
Adapter |
Gasket Material |
|
PX |
01=1 |
9 3/4(24.8) |
Y=1inch open |
Y=1inch open |
Gasket |
|
|
03=3 |
9 7/8(25.1) |
End Gasket |
End Gasket |
P=Santoprene |
|
|
05=5 |
10(25.4) |
L=Extended |
K=Self Seal |
O-Rings |
|
|
10=10 |
19 1/2(49.5) |
Core |
Spring |
S=Silicone |
|
|
20=20 |
20(50.8) |
E=222 O-Ring |
H=Fin |
E=EPDM |
|
|
30=30 |
29 1/4(74.3) |
X=Standard |
S=Solid End |
|
|
|
50=50 |
30(76.2) |
Purtrex Plain |
X=Standard |
|
|
|
75=75 |
40(01.6) |
End |
Purtrex Plain |
|
|
|
|
50(127.0) |
|
|
|
◇ Putrex Filter Cartridge's flow rate performance to clean water：
Inside diameter of the cartridge ： 1inch(2.5cm)
Outside diameter of the cartridge： 2.5inch （6.4cm ）

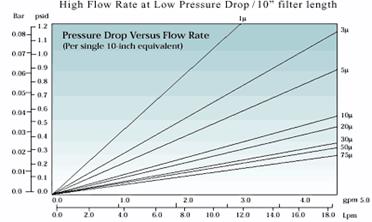

Relationship of the Flow rate & Pressure loss（10inch cartridge） |
